(Crane Hom)
Tshuab Qhov zoo
Cov neeg raug siab, qhov vuam qhov taub tsuas yog 0.2mm-0.5mm
Me me cuam tshuam cheeb tsam, tsis muaj distortion ntawm cov khoom ua.
Tsis muaj kev cuam tshuam rau etch tom qab vuam, tsis tshua muaj oxidation tus nqi, xim ntawm cov khoom ua haujlwm tsis zoo.
Tsis muaj stomata lossis xuab zeb qhov ploj tom qab vuam.
Muaj peev xwm ua tiav ntawm qhov chaw vuam, tshwj xeeb tshaj yog muaj feem xyuam rau kev kho mound thiab xav tau polishing.
Cov khoom ua haujlwm tuaj yeem ncav cuag 50-60rockwell tawv.
Siv tau rau khoom thiab teb
Kho cov kab nrib pleb, tawg hneev taw, kov ntug thiab puas sealing sab, vuam ntawm horniness khoom (~HRC60).
Technical specifications
|
Qauv |
HBS-WY-M02-400W |
|
Nruab nrab lub zog laser |
400W |
|
Max zog ntawm ib leeg mem tes |
120J |
|
Laser wavelength |
1064nm ua |
|
mem tes dav |
0.5-20ms |
|
Laser vuam zaus |
0.5 -100HZ |
|
Spot size range |
0.2-2 hli |
|
Fais fab mov |
380VAC ± 10% / 50HZ / 50A |
|
Kev siv fais fab |
Tsawg dua lossis sib npaug li 12 KW |
|
Txoj kev txias |
Dej txias |
|
Cov dej txias txias |
10L / min |
|
Max. qhov siab ntawm pwm |
165 cm |
|
Kev mus ncig ntawm lub rooj ua haujlwm |
170mm X 130mm X 200mm (L x W x H) |
|
Load-cov kabmob ntawm lub rooj ua haujlwm |
tsawg dua 150KG |
|
Focal nrug |
90mm / 120mm yeem |
|
Txoj kab uas hla ntawm welding hlau |
0.1mm-0.8 hli |
|
Qhov hnyav |
Tsawg dua los yog sib npaug li 400kg |
|
Hazard Class |
Chav Kawm 4 |
Main Yam khoom:
|
Laser Source |
YAG laser qhov chaw ua los ntawm HBS Hoobkas |
|
Laser zog |
Ua los ntawm HBS Factory |
|
Xenon teeb |
Ua nyob rau hauv Suav teb |
|
CCD lub koob yees duab / microscope |
Ua nyob rau hauv Suav teb |
|
Kov npo |
Ua nyob rau hauv Suav teb |
|
Dej Chiller |
S&A Tau |
|
Kev tiv thaiv lens |
Ua nyob rau hauv Suav teb |
Cov qauv tso saib:
Tshuab Main Yam khoom thiab Duab:
YAG tswj qhov system, zoo kev teeb tsa ntawm kab txhab nyiaj, xyuas kom meej tus kev nyab xeeb ntawm kev ua haujlwm
X-Y-Z Axis Ua haujlwm rooj, siab Joystick, crane system, hloov tau los kho kho txawv precision pob ntsia hlau tsav dimension ntawm pwm (Faj seeb: crane yog qhov xaiv xaiv)

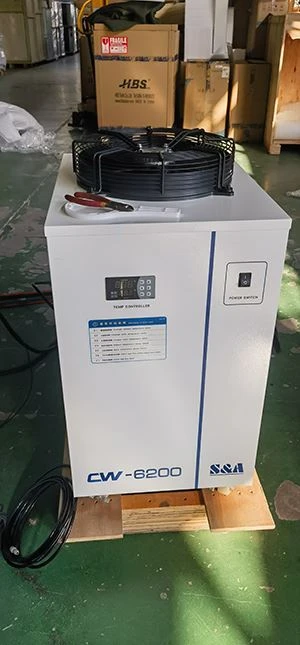

Dej chiller, los ntawm hom loj hauv Suav tebKov npo, koj parameter ua tau ua yooj yim cawm
Ko taw pedal Object Lens tiv thaiv lens
Ntim Txoj kev:
Kev xa khoom thiab Kev xa khoom:
Nkoj hauv 20-30 hnub tom qab 100% them nyiaj;
Plywood lub thawv ntim, ntim rau hauv ob lub thawv nrog qhov ntev ntawm 180 * 55 * 80cm, 156 * 132 * 153cm. Tag nrho hnyav 600KGs.
Kev them nyiaj Cov ntsiab lus:
Them ua ntej 50% thaum peb tau txais daim ntawv xaj khoom;
Ua kom tiav qhov seem 50% them ua ntej cov khoom thauj tawm HBS
Tom qab- muag kev pabcuam nqe lus
Ib xyoos lav;
HBS tuaj yeem cob qhia 1-2 engineers rau cov neeg siv khoom dawb hauv HBS lub Hoobkas.
Hauv Ib xyoos ntawm kev yuav khoom, xws li tshuab tsis ua haujlwm yog qhov teeb meem zoo, kev saib xyuas dawb. Cov kev pabcuam tsis suav nrog tib neeg lossis ib puag ncig, cov neeg siv khoom ua txhaum thiab ntu khoom siv.
Consumables:
1. xenon teeb, nqi 80USD ib tug
2.Protective Lens, Nqe 15USD rau ib qho
Xaiv tau qhov chaw:
1. Hlau: 0.15-0.6mm (10-35 USD / 100m)
2. Sib nqus pob jig
3. Booster ua haujlwm nrog lub tshuab 400W ntawm 380V lub zog tso zis yog tias koj lub rooj cob qhia fais fab yog 220V
4. 20KVA transducer qhov ntev: 68 * 50 * 97cm nyhav: 90Kgs
5. Hlau pub cwj mem
